Could someone please test an idea for me?
« on: February 18, 2012, 03:45:45 PM »
 Could someone please test an idea for me?


Others have pointed out the rimmed chamberings in the Handi is the way to go but we do not always have that option available to us.


I have thought of a rimmed 30-06 or 35 Whelen in the past, but did not have the time to look into it.


Two current threads on the forum got me to thinking.


“Rim Job”
http://www.gboreloaded.com/forums/index.php/topic,251822.0.html?PHPSESSID=51ulqp3vru92jbp50vlj22meh2


and


“35 Whelen FTF”
http://www.gboreloaded.com/forums/index.php/topic,252040.0.html?PHPSESSID=51ulqp3vru92jbp50vlj22meh2


In the last thread it was suggested that brass be “rimmed”.
This would require machine work to create the needed brass, difficult for the average shooter.


In the first thread, rimmed brass is reformed to create the needed brass, easy enough for any hand loader.


Thus the thought I had.
It appears that the 444 Marlin has a good rim and the correct .470 rear case dia, and excessive dia for the neck area of the case. The case is a touch short, but I believe that reforming the case by putting it through the 06 or Whelen dies might just be enough for OAL.


So,,, Can anyone run a piece of 444 brass through an 06 or Whelen FL sizing die to see what would happen and let us know ?




Otter Bob







Offline cwlongshot

  • GBO Supporter
  • Trade Count: (158)
  • Senior Member
  • *****
  • Posts: 9907
  • Gender: Male
  • Shooting, Hunting, the Outdoors & ATVs
Re: Could someone please test an idea for me?
« Reply #1 on: February 18, 2012, 03:58:05 PM »
You know what will happen.. ::) You get a short (wee bit) 30/06 or 35 Whelen with a rim and a thick neck! (Neck reaming will fix that easy enough)

The 444 is basically a rimmed '06 case to begin with. But there is also a european rimmed case that will work too... its designation escapes me...

CW
"Pay heed to the man who carries a single shot rifle, he likely knows how to use it."

NRA LIFE Member
Remember... Four boxes keep us free: the soap box, the ballot box, the jury box, and the cartridge box.

Offline otterbob

  • GBO Supporter
  • Trade Count: (0)
  • Member
  • *****
  • Posts: 72
Re: Could someone please test an idea for me?
« Reply #2 on: February 18, 2012, 04:09:56 PM »
You know what will happen.. ::) You get a short (wee bit) 30/06 or 35 Whelen with a rim and a thick neck! (Neck reaming will fix that easy enough)

But there is also a european rimmed case that will work too... its designation escapes me...

CW

You may be right on the (wee bit), But I do not have any 444 brass to try in my 06 dies.
I just think that there is enough "extra" brass that it might "just" reach OAL.

You may be thinking about the 7x65R which might work, but I think its tapper would leave it lacking in neck dia.


Otter Bob

Offline Smokin Joe

  • Trade Count: (6)
  • Senior Member
  • *****
  • Posts: 1230
Re: Could someone please test an idea for me?
« Reply #3 on: February 18, 2012, 04:19:20 PM »
The 7 X 65R should work after the first fireforming


Deo duce, ferro comitante
With God as my leader and my sword as my companion

Offline otterbob

  • GBO Supporter
  • Trade Count: (0)
  • Member
  • *****
  • Posts: 72
Re: Could someone please test an idea for me?
« Reply #4 on: February 18, 2012, 04:30:02 PM »
The 7 X 65R should work after the first fireforming

Yes, that should work fine , I just liked the correct .470 case of the 444 and is availability of the brass, however I have fireformed other cases in the past and am not opposed to fireforming the 7x65r.


Otter Bob

Offline Smokin Joe

  • Trade Count: (6)
  • Senior Member
  • *****
  • Posts: 1230
Re: Could someone please test an idea for me?
« Reply #5 on: February 18, 2012, 05:43:24 PM »
Actually, 4-D lists it as .471. .470 may be nominal:


Deo duce, ferro comitante
With God as my leader and my sword as my companion

Offline trotterlg

  • GBO Supporter
  • Trade Count: (36)
  • Senior Member
  • *****
  • Posts: 3978
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #6 on: February 18, 2012, 05:50:25 PM »
Do a reality check and measure some -06 brass, mine measures .466 which is normal, you will find that all factory brass is a lot smaller than the SAAMI specs.  So you see, .002 on a drawings is nothing at all.  Larry
A gun is just like a parachute, if you ever really need one, nothing else will do.

Offline dpe.ahoy

  • GBO Supporter
  • Trade Count: (7)
  • Senior Member
  • *****
  • Posts: 3363
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #7 on: February 18, 2012, 06:15:17 PM »
Using the 444 Marlin case, just look up the 309 and 358 JDJ cartridges and that's what you are talking about.  JD would never let the H&R;s get rechambered for his rounds, but there are other wildcats that are the same basic cartridge.  DP
RIP Oct 27, 2017

Handi's:22Shot, 22LR, 2-22Mag, 22Hornet, 5-223, 2-357Max, 44 mag, 2-45LC, 7-30 Waters, 7mm-08, 280, 25-06, 30-30, 30-30AI, 444Marlin, 45-70, AND 2-38-55s, 158 Topper 22 Hornet/20ga. combo;  Levers-Marlins:Two 357's, 44 mag, 4-30-30s, RC-Glenfields 36G-30A & XLR, 3-35 Rem, M-375, 2-444P's, 444SS, 308 MX, 338Marlin MXLR, 38-55 CB, 45-70 GS, XS7 22-250 and 7mm08;  BLR's:7mm08, 358Win;  Rossi: 3-357mag, 44mag, 2-454 Casull; Winchesters: 7-30 Waters, 45Colt Trapper; Bolt actions, too many;  22's, way too many.  Who says it's an addiction?

Offline cwlongshot

  • GBO Supporter
  • Trade Count: (158)
  • Senior Member
  • *****
  • Posts: 9907
  • Gender: Male
  • Shooting, Hunting, the Outdoors & ATVs
Re: Could someone please test an idea for me?
« Reply #8 on: February 19, 2012, 01:48:02 AM »
I was at the bench this AM...

Here is a 444 run thru my RCBS 35 Whelen die...

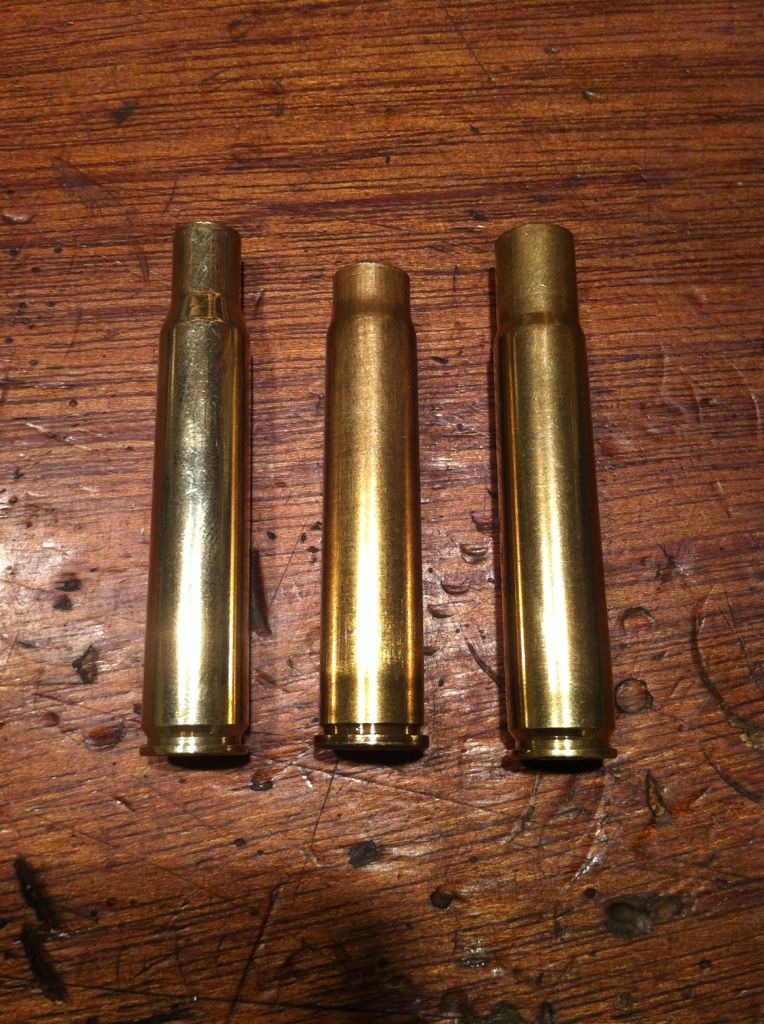

Here is a pic (L-R) a 444, a 30/06, a 35W/444 and a 35 Whelen.



As you can see, the 444 brass is "wee bit" short... ::)

CW
"Pay heed to the man who carries a single shot rifle, he likely knows how to use it."

NRA LIFE Member
Remember... Four boxes keep us free: the soap box, the ballot box, the jury box, and the cartridge box.

Offline woodsrunner

  • Trade Count: (6)
  • Avid Poster
  • **
  • Posts: 105
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #9 on: February 19, 2012, 04:35:18 AM »
CW--I've got the same problem myself--woodsrunner
Good Hunting--Woodsrunner

Offline otterbob

  • GBO Supporter
  • Trade Count: (0)
  • Member
  • *****
  • Posts: 72
Re: Could someone please test an idea for me?
« Reply #10 on: February 19, 2012, 05:25:55 AM »
 Thank you “CW” and “woodsrunner” for trying it, even though we did forsee the results.


I think  “trotterig” hit the nail on the head with his calipers.


I think fireforming the 7x65r as suggested by “Smokin Joe” is the ticket for creating a rimmed 06 or Whelen in a Handi


For myself , most of this years projects are already on the drawing board , so I will have to put this on the back burner for now, However I would like to build a Handi in a rimmed 06 or Whelen.


As it appears at this point, all that would be needed is to rim cut the barrel, fireform the brass , and work up a load.  Although not necessary, converting to ejector would be a nice addition to the project.

This should cure many FTF problems and create a very dependable gun.





Otter Bob

Offline jeepmann1948

  • GBO Supporter
  • Trade Count: (67)
  • Senior Member
  • *****
  • Posts: 1422
  • Gender: Male
  • San Angelo, Texas
Re: Could someone please test an idea for me?
« Reply #11 on: February 19, 2012, 07:09:40 AM »
Has anyone tried necking a 405 Win down to 35 Whelen ? The brass is available and a lot cheaper than the 7X65R. It is a few thousandths smaller at the base but it might work after fire forming.
"it ain't what you shoot em with......................
  it's where you hit em "

Offline otterbob

  • GBO Supporter
  • Trade Count: (0)
  • Member
  • *****
  • Posts: 72
Re: Could someone please test an idea for me?
« Reply #12 on: February 19, 2012, 09:08:43 AM »
Using the 444 Marlin case, just look up the 309 and 358 JDJ cartridges and that's what you are talking about.

I did take a look at the JDJ'S you listed , They are completely different chamberings, He used the 444 but then moved the shoulder rearward .138 and .148 respectively then changed the shoulder angles thus creating a completely different wildcat.

What I was looking to do was simply "Add" a rim to the same specs of the 06 or Whelen.


Otter Bob

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43304
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #13 on: February 19, 2012, 09:23:52 AM »
Has anyone tried necking a 405 Win down to 35 Whelen ? The brass is available and a lot cheaper than the 7X65R. It is a few thousandths smaller at the base but it might work after fire forming.

Here ya go, 405 Win case is .458" at the case head vs .463" for the Rem Whelen, 2.587" long, neck diameter is .383"  with bullet seated. There's a slight difference in shoulder position because my 35 Whelen die is set up for forming 35 Whelen Improved.

Tim
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline otterbob

  • GBO Supporter
  • Trade Count: (0)
  • Member
  • *****
  • Posts: 72
Re: Could someone please test an idea for me?
« Reply #14 on: February 19, 2012, 11:58:51 AM »
Here ya go, 405 Win case is .458" at the case head vs .463" for the Rem Whelen, 2.587" long, neck diameter is .383"  with bullet seated. There's a slight difference in shoulder position because my 35 Whelen die is set up for forming 35 Whelen Improved.

Tim

That is interesting and would be a simple make-up

Many thanks to you for making up these cases and posting the pictures.
I really like the size of the rim on that 405.

Guess we should call that a 35-R Whelen imp ?


Otter Bob

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43304
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #15 on: February 19, 2012, 01:20:00 PM »
Guess we should call that a 35-R Whelen imp ?


Otter Bob

Sure, once it's fireformed any way!!  ;)

Tim
"Always do right, this will gratify some and astonish the rest" -  Mark Twain

Offline giddens1972

  • GBO Supporter
  • Trade Count: (33)
  • Avid Poster
  • *****
  • Posts: 247
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #16 on: February 19, 2012, 01:29:03 PM »
That looks like a winner Mr. Quick...I have been thinking about a 35 whelen or some other 35 to add to my collection.  That looks like it might be a good candidate.
John

Offline bikerbeans

  • Trade Count: (168)
  • Senior Member
  • *****
  • Posts: 4070
  • Gender: Male
  • BANDIT - North American Snake Hound
Re: Could someone please test an idea for me?
« Reply #17 on: February 19, 2012, 01:42:24 PM »
The 9.3x74R Norma brass I have, unfired, measures  .466" at the base, rim about .522".  Plenty long for an 06 or 35W.  Not cheap to buy, Hornady is the cheapest at about $1.40 a piece plus freight if you are buying online.
BB
RIP Tom: Tom Nolan, ( bikerbeans) passed away this afternoon (02-04-2021).

Why be difficult, when with a little extra effort you can be impossible?

Wife's Handis;  300 BLKOUT

MINE:  270W, 308x444, 44 Bodeen, 410 shorty rifled slug gun, 445 SuperMag Shikari, 45 ACP shorty,  45-70 Shikari, 45 Cal Smokeless MZ, 50cal 24" SS Sidekick, 50 cal 24" Huntsman, 50 cal 26" Huntsman, 50 cal 26" Sidekick, 50-70 Govt Shikari, Tracker II 20 ga shorty, 20 ga VR Pardner, 20ga USH, 12ga VR NWTF, 12ga Tracker II shorty WITHOUT scope, 12ga USH, 10 ga  Pardner Smoothbore slug gun & 24ga Profino Custom rifled slug gun.

Offline quickdtoo

  • Global Moderator
  • Trade Count: (149)
  • Senior Member
  • *****
  • Posts: 43304
  • Gender: Male
Re: Could someone please test an idea for me?
« Reply #18 on: February 19, 2012, 01:45:11 PM »
Hornady 405W brass is about $1 each.

Tim
"Always do right, this will gratify some and astonish the rest" -  Mark Twain
