Mountian Howitzer
« on: February 02, 2005, 05:29:52 PM »

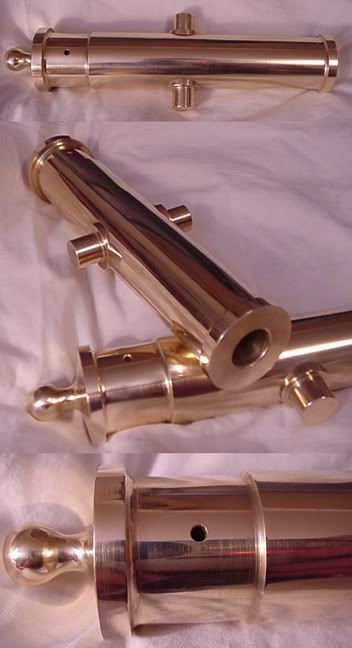

Hey, Here is another barrel I made. It's 1/4 scale with a 3/4 inch bore. Machined from 660 Bronze. Later, Powder Keg
Logged
Wesley P.
"Powder Keg"
Custom Machine work done reasonable. I have a small machine shop and foundry. Please let me build your stuff. I just added Metal etching to my capabilities. I specialize in custom jobs.
"When the gun is lost, All is lost"

Online Double D

  • Trade Count: (3)
  • Senior Member
  • *****
  • Posts: 12614
  • SAMCC cannon by Brooks-USA
    • South African Miniature Cannon Club
Mountian Howitzer
« Reply #1 on: February 02, 2005, 06:31:24 PM »
Bootiful!!!!

I couldn't have one of those.  My training as a Marine would compel me to break out the brasso and duraglint twice a day!
Logged

Offline Will Bison

  • Trade Count: (0)
  • A Real Regular
  • ****
  • Posts: 591
Mountian Howitzer
« Reply #2 on: February 03, 2005, 06:55:23 AM »
That's great work.

I have a question, how did you affix the trunnions?
Logged

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Mountian Howitzer
« Reply #3 on: February 03, 2005, 12:16:26 PM »
Quote from: Will Bison
That's great work.

I have a question, how did you affix the trunnions?


Powder keg -

That's great work.

I have a question, how did you affix the trunnions?
Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline Powder keg

  • GBO Sponsor
  • GBO Supporter
  • Trade Count: (0)
  • A Real Regular
  • *****
  • Posts: 752
Mountian Howitzer
« Reply #4 on: February 03, 2005, 01:12:19 PM »
Trade Secret :O)
Logged
Wesley P.
"Powder Keg"
Custom Machine work done reasonable. I have a small machine shop and foundry. Please let me build your stuff. I just added Metal etching to my capabilities. I specialize in custom jobs.
"When the gun is lost, All is lost"

Offline Will Bison

  • Trade Count: (0)
  • A Real Regular
  • ****
  • Posts: 591
Mountian Howitzer
« Reply #5 on: February 05, 2005, 07:40:55 AM »
Well Tim I guess we'll never know.
Logged

Offline Powder keg

  • GBO Sponsor
  • GBO Supporter
  • Trade Count: (0)
  • A Real Regular
  • *****
  • Posts: 752
Mountian Howitzer
« Reply #6 on: February 05, 2005, 08:36:12 AM »
Just kidding:O) I set the barrel in my dividing head on my mill and used a 1" end mill and milled a pocket .0625" deep. I then measured the pocket and made the trunnions the exact same size as the pocket, making a press fit.  The trunnions had a recessed counter bore in the end and when I pressed them ttogatherI filled this recess with some of that 2 part metal epoxy that you kneed ttogather The recess is so when the trunnions are pressed togather all of the epoxy isn't squished out. Does this make sense? You need to make sure the metal is clean so the epoxy will stick good.

Powder Keg
Logged
Wesley P.
"Powder Keg"
Custom Machine work done reasonable. I have a small machine shop and foundry. Please let me build your stuff. I just added Metal etching to my capabilities. I specialize in custom jobs.
"When the gun is lost, All is lost"

Offline Will Bison

  • Trade Count: (0)
  • A Real Regular
  • ****
  • Posts: 591
Mountian Howitzer
« Reply #7 on: February 06, 2005, 06:02:17 AM »
Ah Ha! We thought you had a trunnion lathe.
Logged

Offline CU_Cannon

  • Trade Count: (0)
  • Contributor
  • ***
  • Posts: 343
Mountian Howitzer
« Reply #8 on: February 06, 2005, 11:05:12 AM »
Great work!

Any chance of getting some drawings of that barrel?
Logged

Offline GGaskill

  • Moderator
  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 5669
  • Gender: Male
Mountain Howitzer Drawings
« Reply #9 on: February 09, 2005, 08:26:18 PM »
What scale drawing do you want?  Can you read .dwg files or do you need paper?
Logged
GG
“If you're not a liberal at 20, you have no heart; if you're not a conservative at 40, you have no brain.”--Winston Churchill

Offline Cat Whisperer

  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 7493
  • Gender: Male
  • Pulaski Coehorn Works
Mountian Howitzer
« Reply #10 on: February 10, 2005, 12:57:10 AM »
I'd like a set in full scale.  I have AC 2000 and am fluent in both 2d and 3d.

Impressive work.
Logged
Tim K                 www.GBOCANNONS.COM
Cat Whisperer
Chief of Smoke, Pulaski Coehorn Works & Winery
U.S.Army Retired
N 37.05224  W 80.78133 (front door +/- 15 feet)

Offline CU_Cannon

  • Trade Count: (0)
  • Contributor
  • ***
  • Posts: 343
Mountian Howitzer
« Reply #11 on: February 10, 2005, 04:39:58 AM »
I'd like a full scale and a 1/4 scale if you have them.  If I build one it would most likely be 1/4 scale but a full size set would be nice to have for reference.  I have AutoCAD 2002.

For those who don't have AutoCAD there is a free utility at http://www.infograph.com/products/dwgviewer/ that you can use to open and print .dwg files.  It is a large download around 8.7 MB.  It is not too bad, Volo View is much better but it is no longer available at the AutoDesk website.
Logged

Offline GGaskill

  • Moderator
  • Trade Count: (2)
  • Senior Member
  • *****
  • Posts: 5669
  • Gender: Male
Mountain Howitzer Prints
« Reply #12 on: February 10, 2005, 09:04:24 AM »
Since you both have a CAD program that can manipulate the file, I'll be happy to send the full size plans (barrel only.)  I have one restriction--please do not give other people copies of the file.  You can give them paper prints but if they want the file, send them to me.

I need targets for the emails.  PM me.

As the old saying goes, measure twice, cut once.  Be sure to review the dimensions on the drawing for reasonableness.  Some are text and don't automatically change when scaled.  I think they are all OK but it's your project that won't be right if there is a mistake.
Logged
GG
“If you're not a liberal at 20, you have no heart; if you're not a conservative at 40, you have no brain.”--Winston Churchill

Offline CAV Trooper

  • Trade Count: (0)
  • Avid Poster
  • **
  • Posts: 228
Mountian Howitzer
« Reply #13 on: February 10, 2005, 10:40:18 AM »
Guys,

If it helps, I found a web site where you can download Volo View as freeware. It's 15MB so if you're on a 56k hookup, plan on it taking a while.

http://www.softlookup.com/display.asp?ID=23382&DID=4J58YURT


If it's not too much trouble, I'd like a set of the plans myself.
Logged
“Only two things are infinite, the universe and human stupidity, and I'm not sure about the former."
Albert Einstein

Offline Powder keg

  • GBO Sponsor
  • GBO Supporter
  • Trade Count: (0)
  • A Real Regular
  • *****
  • Posts: 752
Mountian Howitzer
« Reply #14 on: February 11, 2005, 12:34:01 PM »

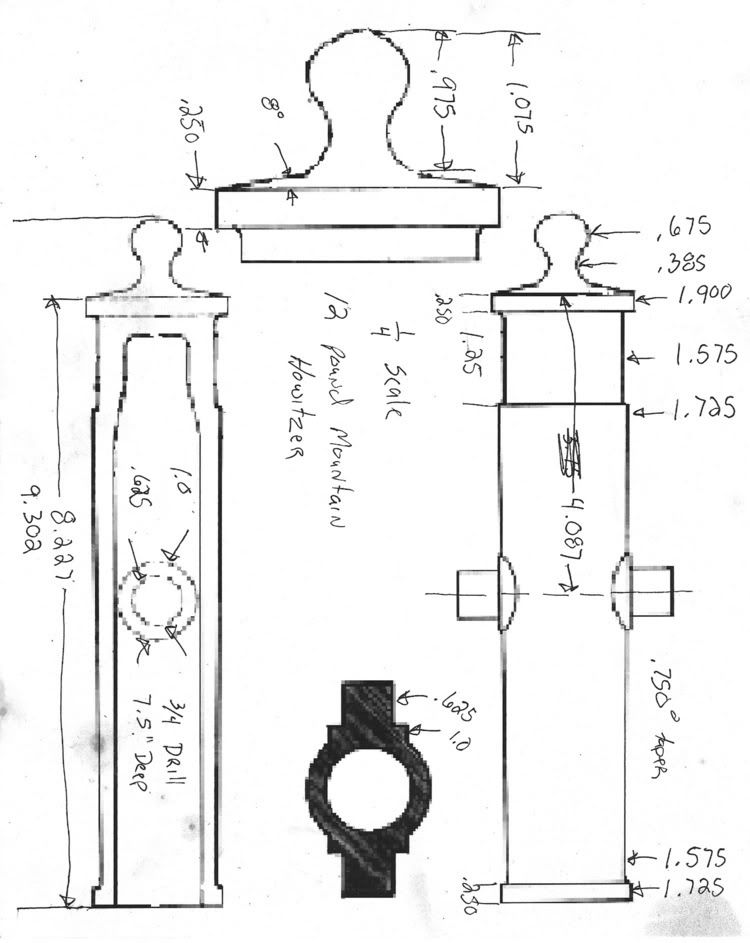

Hello All, Here is the plans I used for my 1/4 scale howitzer. Sorry about the delay. My day job gets in the way of things.
Powder Keg
Logged
Wesley P.
"Powder Keg"
Custom Machine work done reasonable. I have a small machine shop and foundry. Please let me build your stuff. I just added Metal etching to my capabilities. I specialize in custom jobs.
"When the gun is lost, All is lost"
